Singapore’s regulatory framework for facade safety is comprehensive and continuously evolving. The Building Control Act and its subsidiary legislation form the foundation of facade-related regulations. The BCA’s Code of Practice for Building Facades provides detailed technical requirements for design, construction, and maintenance. Additionally, Singapore Standards such as SS 544 for concrete structures and SS EN 13830 for curtain walling provide specific guidance on materials and systems.
The Periodic Facade Inspection (PFI) regime, introduced in 2010 and enhanced over the years, requires buildings above 13 meters in height and more than 20 years old to undergo comprehensive facade inspections every 5 years. This requirement has created a specialized field of facade inspection and rectification, demanding expertise in various facade systems, materials testing, and remediation techniques.
Our facade design services encompass the complete lifecycle of facade development, from conceptual design through to construction documentation and site supervision. We work closely with architects to develop facade solutions that meet aesthetic visions while ensuring structural integrity, weather resistance, and compliance with local regulations.
As BCA-registered Facade Inspectors, we provide comprehensive PFI services that go beyond mere compliance. Our systematic approach ensures thorough assessment of all facade elements, identification of potential hazards, and practical recommendations for remediation.
Beyond regulatory requirements, we offer detailed condition assessments for building owners seeking to understand the current state of their facades. These assessments provide valuable data for maintenance planning, budgeting, and asset management.
| No. | Defect Type | Common Causes | Typical Locations | Rectification Methods | Prevention Strategies |
|---|---|---|---|---|---|
| 1 | Concrete Spalling | Carbonation-induced corrosion, chloride attack, inadequate concrete cover | Balconies, ledges, beam soffits | Remove loose concrete, treat exposed rebars with anti-corrosion coating, apply polymer-modified repair mortar, install protective coating | Adequate concrete cover (40mm min), use of corrosion inhibitors, regular protective coating maintenance |
| 2 | Tile Debonding | Thermal movement, poor workmanship, substrate movement, adhesive failure | External walls, especially west-facing facades | Remove hollow tiles, prepare substrate, install movement joints, re-tile with flexible adhesive, consider overcladding for extensive debonding | Proper movement joint design (every 3-4m), use of flexible adhesives, substrate preparation |
| 3 | Sealant Failure | UV degradation, incompatible materials, poor installation, exceeded service life | Window perimeters, expansion joints, curtain wall interfaces | Remove failed sealant completely, clean and prime joints, install backer rod, apply compatible sealant with proper tooling | 5-year sealant replacement cycle, use of UV-resistant sealants, proper joint design (2:1 width to depth ratio) |
| 4 | Water Seepage | Failed waterproofing, cracks, poor detailing, blocked weep holes | Window sills, roof parapets, balcony edges | Identify water path using water tests or thermal imaging, repair cracks with injection grouting, apply waterproof membrane, improve drainage | Proper waterproofing design, adequate slopes (1:60 min), regular drain maintenance |
| 5 | Paint Deterioration | UV exposure, moisture ingress, poor surface preparation, incompatible paint systems | All painted surfaces, especially south and west orientations | Remove loose paint by scraping or abrasive blasting, treat surface, apply primer and minimum 2 coats of quality exterior paint | 5-7 year repainting cycle, use of high-quality UV-resistant paints, proper surface preparation |
| 6 | Curtain Wall Gasket Deterioration | UV exposure, ozone attack, compression set, material aging | Glazing gaskets, frame joints | Replace deteriorated gaskets, clean frames, install new EPDM or silicone gaskets, verify drainage paths | Regular inspection (annual), gasket replacement every 10-15 years, UV-resistant materials |
| 7 | Efflorescence | Water migration through porous materials, presence of soluble salts | Brick walls, concrete surfaces, mortar joints | Dry brush to remove salts, identify and eliminate water source, apply penetrating sealer after thorough drying | Good waterproofing, adequate drainage, use of efflorescence-resistant materials |
| 8 | Structural Cracks | Settlement, thermal movement, structural overloading, shrinkage | Beam-column junctions, floor slabs, around openings | Structural assessment, epoxy injection for cracks <0.3mm, stitching or strengthening for wider cracks, address underlying cause | Proper structural design, control joints, adequate reinforcement |
| 9 | Metal Corrosion | Exposure to moisture and oxygen, galvanic corrosion, coating failure | Steel windows, railings, support brackets, fixings | Remove rust by grinding or blasting, apply rust converter, prime with zinc-rich primer, apply protective coating system | Galvanized or stainless steel components, regular coating maintenance, avoid dissimilar metals |
| 10 | Glass Breakage | Thermal stress, impact, nickel sulfide inclusions, edge damage | Large glass panels, skylights, unshaded areas | Replace broken glass with safety glass, investigate breakage pattern, consider heat-strengthened or tempered glass | Proper glass specification, edge protection, shading design, heat soak testing for tempered glass |
| 11 | Render Delamination | Poor bonding, substrate movement, moisture ingress, freeze-thaw cycles | External walls, especially at different material interfaces | Remove hollow render, prepare substrate with bonding agent, apply render in proper thickness with mesh reinforcement | Proper substrate preparation, control layer thickness (20mm max per coat), include mesh at stress points |
| 12 | Precast Panel Joint Failure | Sealant failure, differential movement, poor joint design | Panel joints, corners, interfaces with other materials | Clean out failed joint material, install compressible filler, apply appropriate sealant with correct joint geometry | Adequate joint width (20-30mm), proper sealant selection, regular maintenance |
| 13 | Louver Malfunction | Corrosion of operating mechanisms, accumulation of dirt, damaged blades | Plant rooms, car park ventilation, facade screens | Clean and lubricate mechanisms, replace damaged blades, upgrade to stainless steel components in severe cases | Regular cleaning (quarterly), annual mechanism servicing, specify marine-grade materials |
| 14 | Composite Panel Delamination | Adhesive failure, core degradation, water ingress, thermal cycling | Aluminum composite panels, especially at edges and fixings | Replace affected panels, ensure proper edge sealing, verify structural adequacy of fixing system | Quality panel selection (PVDF coating), proper edge treatment, regular inspection |
| 15 | Biological Growth | High humidity, poor drainage, lack of sunlight, porous surfaces | North-facing walls, areas with poor drainage, shaded zones | Clean with biocide solution, improve drainage and ventilation, apply anti-fungal coating | Design for good drainage and ventilation, regular cleaning, use of biocidal additives in coatings |
| 16 | Anchorage Failure | Corrosion, inadequate design, installation defects, overloading | Cladding fixings, canopy connections, signage attachments | Replace failed anchors with stainless steel, verify load capacity, add supplementary fixings if required | Proper anchor specification, redundancy in design, regular inspection and testing |

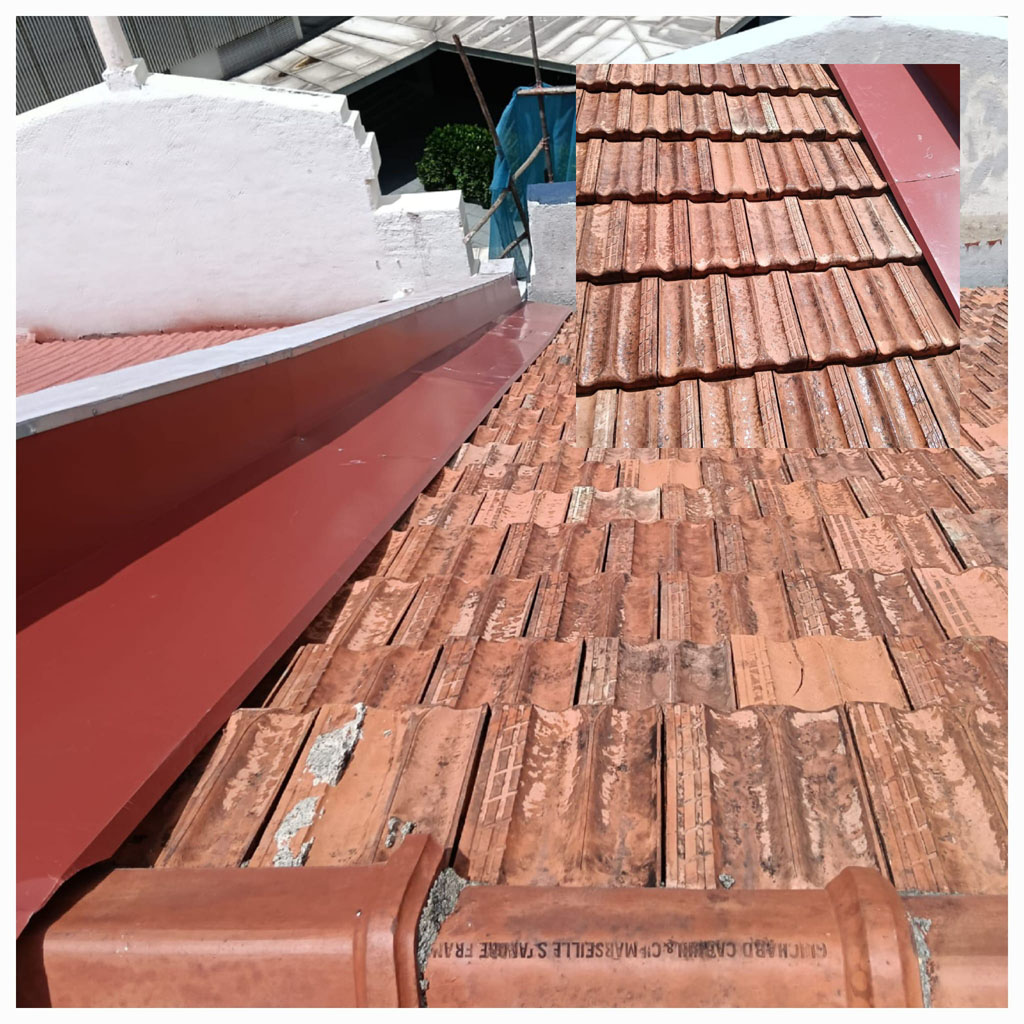

| 17 | Flashing Failure | Corrosion, poor installation, inadequate overlap, sealant failure | Window heads, parapet tops, roof-wall junctions | Replace damaged flashing, ensure proper lapping (150mm min), seal all joints, install drip edges | Use of durable materials (lead-coated copper, stainless steel), proper detailing, regular inspection |
| 18 | Insulation Degradation | Moisture ingress, compression, UV exposure (exposed insulation) | Curtain wall spandrels, EIFS systems, roof parapets | Remove wet insulation, address moisture source, install new insulation with vapor barriers | Proper vapor barrier installation, protection from moisture, regular thermal imaging surveys |
| 19 | Expansion Joint Failure | Inadequate movement capacity, debris accumulation, sealant failure | Building separation joints, long facade runs | Clean out joint, install new compressible filler and cover plate system, ensure adequate movement capacity | Proper joint sizing (25mm min), regular cleaning, protective cover plates |
| 20 | Facade Access System Defects | Corrosion, mechanical wear, lack of maintenance, obsolescence | BMU tracks, davit bases, gondola guide rails | Repair or replace defective components, update to current safety standards, implement maintenance program | Annual inspection and certification, regular maintenance, protective coatings |
Site inspection, document review, preliminary risk assessment
Close-range inspection, testing, root cause analysis
Rectification options, cost-benefit analysis, detailed specifications
Contractor selection, work supervision, quality control
Testing, documentation, warranty, maintenance planning
High-resolution photography with telephoto lenses allows detailed inspection of upper floors from ground level. Drone surveys provide access to difficult areas while maintaining safety. We use 4K cameras with 30x optical zoom to capture details as small as 0.5mm cracks from distances up to 50 meters.
NDT capabilities include infrared thermography for detecting delamination and moisture ingress. Temperature differentials as small as 0.5°C can indicate subsurface defects. We conduct thermographic surveys during optimal conditions, typically early morning or late evening, when thermal gradients are most pronounced.
Following the initial introduction of PFI requirements, Stage 2 expanded the scope and stringency of inspections based on lessons learned and evolving best practices. This enhanced regime reflects Singapore’s commitment to maintaining high standards of building safety and preventing facade-related incidents.
Stage 2 inspections require a more systematic and comprehensive approach compared to earlier requirements. The inspection must cover 100% of the facade area through a combination of visual inspection and close-range inspection. At least 10% of the facade area must be inspected at close range (within touching distance), with this percentage increasing based on the facade’s condition and complexity.
For buildings with previous facade incidents or extensive defects, the close-range inspection requirement increases to 20% or more. High-risk elements such as cantilevered features, heavy cladding panels, and areas showing visible deterioration require 100% close-range inspection regardless of the overall percentage requirement.
PFI Stage 2 established mandatory rectification timelines based on risk levels. These timelines are legally enforceable, with penalties for non-compliance.
Defects scoring 20-25 on the risk matrix require immediate action. These typically include loose elements at height that could fall imminently, severely corroded structural connections, and large areas of delaminated render or tiles above public areas. Temporary measures such as catch nets or hoarding may be required while permanent repairs are planned.
Defects scoring 15-19 require rectification within 6 months. Examples include moderate spalling with exposed reinforcement, extensive sealant failures causing water ingress, and corroded fixings showing signs of distress. Building owners must submit rectification proposals within 3 months and complete works within 6 months.
Defects scoring 10-14 allow 1 year for rectification. These include minor spalling without exposed reinforcement, localized tile debonding, and deteriorated coatings affecting durability but not safety. Regular monitoring may be required during this period.
Low-risk defects scoring below 10 can be addressed through routine maintenance. However, they must be documented and monitored for deterioration. Examples include surface staining, minor paint deterioration, and hairline cracks not affecting structural integrity.
Our systematic approach ensures thorough assessment, effective solutions, and successful implementation for every facade project.
